Easy-sheet

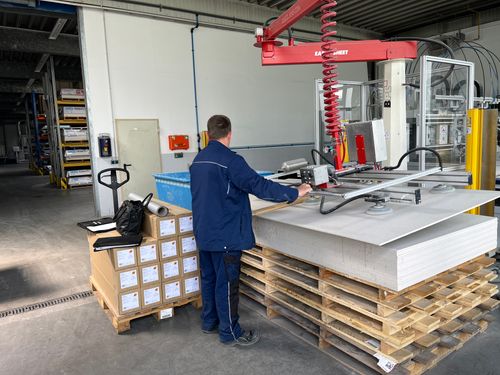

The pneumatic EASY-SHEET is an ergonomic balancer equipped with a user-friendly one-hand operation. The lifting aid is equipped with a vacuum load pick-up, making it ideal for handling sheet material.
Why the easy-sheet?
  • Safe & reliable
  • High lifting and lowering speed
  • Simple positioning
  • Parking brakes on the pivot points
  • Stand-by without air consumption
  • Low noise
  • Delivery including mounting material
  • Possibly to assemble yourself
Why a lifting aid?

work more safely

work more efficiently

More job satisfaction

Description
Column placement
To be fixed with chemical anchors on a non-cracked concrete floor with a minimum thickness of 150 mm. In case of a thinner concrete floor, the column can be mounted on a steel intermediate plate (optional).
Movable
The EASY-UP can (optionally) be executed on a steel forklift base, 1500x1500x50 mm. This makes the device easy to move. Total mass including forklift base approx. 1100 kg
Steel cable
The steel cable must be replaced at a maximum of 50,000 lifting cycles or at least once a year.

In addition to the EASY-UP, we also offer standard solutions for, among other things, roll, axle and plate handling. Roosen BPL is a specialist in customer-specific lifting aids. We are happy to solve your handling issue!
Description
Pillar placement
To be fixed with chemical anchors on a non-cracked concrete floor with a minimum thickness of 150 mm. In case of a thinner concrete floor, the column can be mounted on a steel intermediate plate (optional).
Movable
The EASY-UP can (optionally) be executed on a steel forklift base, 1500x1500x50 mm. This makes the device easy to move. Total mass including forklift base approx. 1100 kg
Steel Cable
The steel cable must be replaced at a maximum of 50,000 lifting cycles or at least once a year.

In addition to the EASY-UP, we also offer standard solutions for, among other things, roll, axle and plate handling.

Roosen BPL is a specialist in customer-specific lifting aids. We are happy to solve your handling issue!
Technical specifications
Lifting capacity
max. 220 kg
Radius range
3000 mm
Height of the appliance
3238 mm
Installation height
3473 mm
Compressed air supply
min. 6 bar of clean dry compressed air
Air consumption
250 NI/cycle
Including CE declaration
